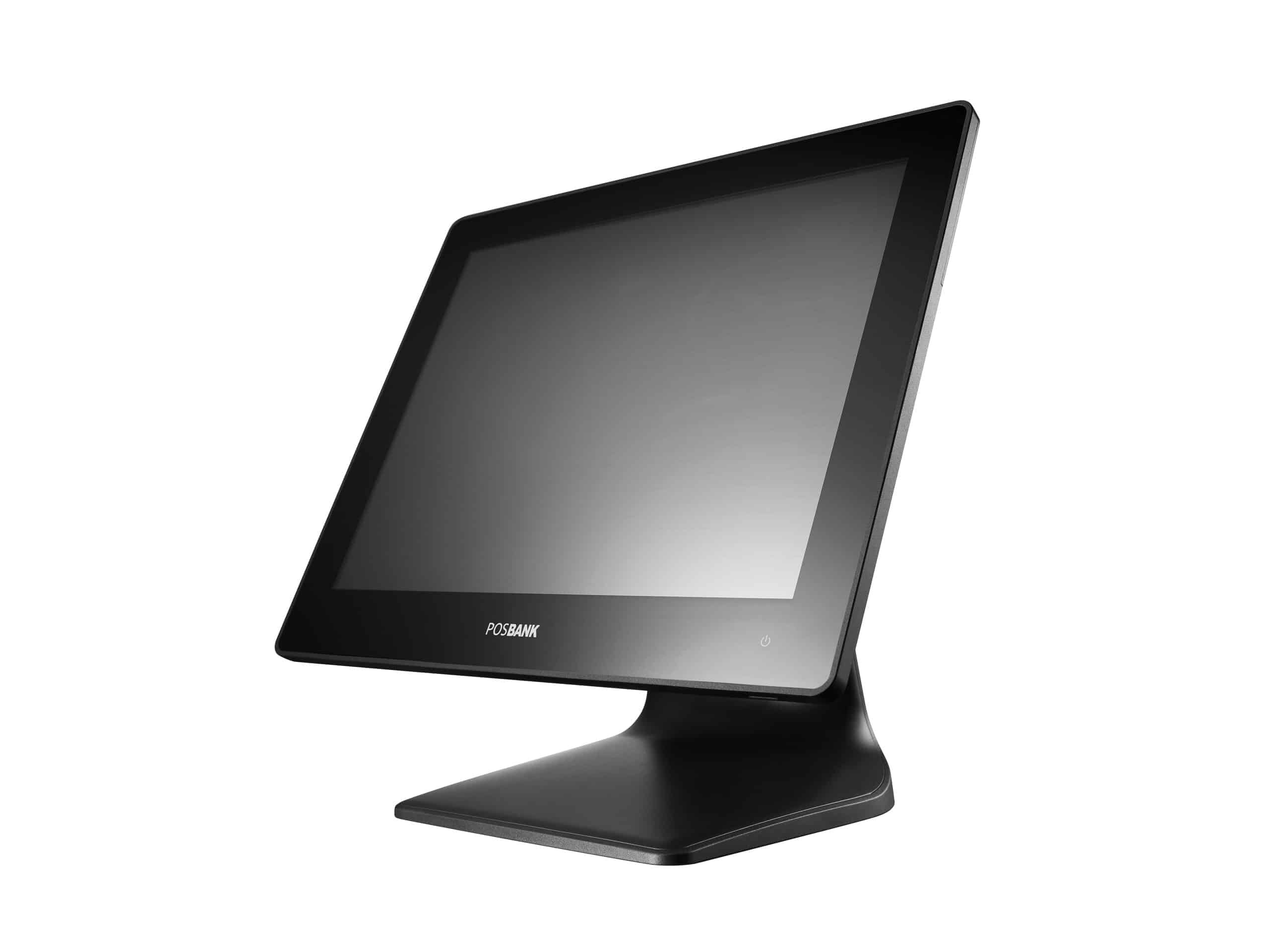

POSBANK Apexa G POS Terminal

Original price was: ₹64,000.00.Current price is: ₹48,427.00. Inc GST

POSBANK Apexa G Windows Desktop POS Terminal J1900-4GB

APEXA® G is POSBANK’s latest POS terminal which reinterprets the traditional forms of mechanical looking in a modern
and contemporary style. Its unrivaled innovative design enables customers to enjoy space efficiency and usability at the same time.
APEXA®G features modern and contemporary styling, powerful performance, superior touch display, multiple I/O interfaces,
and flexible installation. Simply built for today’s retail and hospitality businesses.

POSBANK Apexa G POS Terminal

DESIGN - STYLE AND LOOK. - EVOLVED.

  • One of the top selling POS system from Posbank, Apexa G represents the latest evolution of our POS terminal design. Its modern and contemporary styling, outstanding among other POS solutions, blends seamlessly into today’s store environment while enhancing store decor and brand image. The sleek and compact body with small footprint offers more space at the checkout area for customer engagement and promotions.

KEY FEATURES - STYLE AND LOOK. EVOLVED.

Spill and dust Resistant
The APEXA® G offers superior protection by adopting a special venting technology that prevents spills and dust from reaching the display and the key components inside. The APEXA® PRIME is suitable for restaurants or retail stores with tough operating environments.

INSTALLATION

Flexible Installation
On or Above Counter
Industry-standard VESA enables flexible mounting options. Place it on a counter or hang it on the wall as your business needs meet. An optional VESA-compatible wall mount kit is available. (Additional mounting option is available upon request.)
  • 75x75 mm
    VESA-Cpmpatible
  • 100x100 mm
    VESA-Compatible

SERVICEABILITY

Save Time and Cost
APEXA® G is designed to provide quick access to I/O interfaces and storage. Thanks to the I/O panel on the upper side of the terminal, field serviceability gets much easier and faster.

CONNECTIVITY

Connect It to All
Multiple I/O interfaces are offered on the APEXA® G including 6 USB ports, 6 Serial ports and more. Optional expansion is available. Connect it to all the peripheral devices that meet your business needs.
PERIPHERALS & OPTIONS
More Opportunities to
Engage Customers
Our 2×20 VFD and 2nd displays give customers information on the
transaction, order, advertisement or promotional event at the point
of purchase. Provide them with impressive checkout experiences
and create more sales opportunities.
  • 9.7", 12.1", 15"
    2nd Display
  • VFD
    Customer Display
Applications
Compact 15" PCAP Touch screen offers smaller installation space with accurate touch sensitivity.
APEXA G will be an answer to hospitality or retail sectors that were struggling with installation spaces of the POS System.
  • Counter Top

POSBANK Apexa G POS Terminal

System Specifications

  • Processors
    Intel® Celeron® J1900 (2M Cache, 2.0/2.42 GHz(Burst), 4 Cores), Fanless
  • Chipset
    Intel® Bay Trail
  • Memory
    4GB Standard, DDR3L 1600 MT/s, Socket 1 x SODIMM
  • Storage
    128GB SSD SATA2(3Gb/s), 2.5 inch SSD 64GB, Support AHCI
  • RAID
    -
  • Operating Systems
    Windows 7, Windows 8.1, Windows 10 IoT Enterprise, POS Ready 7
  • Software
    -
  • Printer
    -
  • Audio
    HD Audio Codec
Display
  • Type
    15" TFT LCD, LED Backlight
  • Resolution
    1024 x 768
  • Brightness
    300 cd/m² (typ.)
  • View Angle (U/D/R/L)
    -
  • Touchscreen
    Projected Capacitive Touch
Interface
  • Display
    VGA x 1 (With Power Output)
  • USB
    6 (Rear 2, Back 4, USB 2.0 x 6)
    3 (Reserved for MSR, SCR, i-Button/Touch Controller/Camera), RJ-45
  • PS/2
    -
  • Serial
    Serial x 6
    (COM 1 with 5V/12V Power Output on 9 Pins, BIOS)
    (COM2~3 RJ-45 , Full Signal)
    (COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved for CDP)
    (COM5 Reserved for Cash Drawer Port)
    (COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR)
  • CashDrawer Port
    Option
  • LAN
    Gigabit Ethernet x 1, RJ-45
  • Audio
    Line-out x 1
  • Power DC-IN
    4 Pin DIN Jack
  • MSR
    -
  • VGA
    -
  • HDMI
    -
  • SD Card Slot
    -
  • Extension Slot
    -
  • OTG
    -
Power
  • Power Supply
    Adapter 12V, 5A
Physical & Environmental
  • Operating Temperature
    0 ℃ ~ 60 ℃ at 10% to 90% Humidity
  • Storage Temperature
    -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
  • Dimensions (W x H x D)
    364 x 333 x 210 (mm), 14.3 x 13.1 x 8.2(in)
  • Packing Dimensions (W x H x D)
    500 x 470 x 300 (mm), 19.6 x 18.5 x 11.8(in)
  • Net Weight
    5,300g, 11.68 lbs
  • Packing Weight
    8,000g, 17.63 lbs
  • Certification
    CE, FCC, KC, CB, CCC
  • Color
    Matte Dark gray, High Gloss White
Options & Peripherals
  • Display
    -
  • Touchscreen
    -
  • 2nd Displays
    9.7", 12.1", 15" LCD Display, 1024 x 768, Optional Touchscreen
  • Customer Display
    VFD, 20 Columns x 2 Lines
  • VGA Port
    -
  • I/O Expansion
    Serial x 1 (COM5 RJ-45) (Factory Option)
    Cash Drawer x 1 ( COM5 RJ-11) (Factory Option)
  • Storage
    2.5 inch SSD 128GB, HDD 500GB, 1TB
  • Integrated Printer
    -
  • Magnetic Stripe Reader
    Comply with ISO 7811, Support 1 & 2 & 3 Track
  • Smart Card Reader
    EMV Level 1
  • SD Card Reader
    -
  • Multi Reader
    -
  • Dallas
    Dallas i-button Reader
  • Fingerprint
    Yes
  • System Fan
    -
  • Battery
    -
  • Camera
    -
  • Wall Mount Kit
    VESA-Compatible, 75 x 75(mm), 100 x 100(mm)
  • Serial Conversion Cable
    RJ-45 to D-sub 9
  • Speaker
    2 x 1W (Stereo) (Factory Option)
  • WiFi
    -
  • Bluetooth
    -
  • Memory
    -
* Specifications may change without prior notice.

Additional information

Weight 15 kg
